Data Visualization with Matplotlib and Seaborn

Import Libraries

import pandas as pd
import owncloud
from pathlib import Path

Download Data

Path('data').mkdir(exist_ok=True, parents=True)

owncloud.Client.from_public_link('https://uni-bonn.sciebo.de/s/dDoQxwqdYXAJpw5', folder_password="ibots"
).get_file('/', 'data/gapminder.csv')

True

Data visualizations are a key component of every scientific publication. In this session, we are going to learn how to visualize data using the libraries Matplotlib and Seaborn. We are going to explore the libraries and their interaction by analyzing the Gapminder data set which contains data on population size, life expectancy and fertility from 63 countries over a time span of 50 years.

One very common kind of data are time-series: sequential points, sampled at regular intervals. To plot time-series data, we can use the function plt.plot(x, y) where the variable x contains the time points and y contains the values sampled at those time points. To explore this, we are going to visualize changes in fertility rates over time in different countries. By default, Matplotlib will show plots immediately after executing a cell. Thus, if we wish to do several things, like drawing a plot and labeling it, we’ll have to include the respective commands in the same cell.

Exercise: Run the cell below to load the "gapminder.csv" file, assign it to a data frame df and filter it to extract the data for "Germany" and the "United States". Then, print the .head() of both data frames.

df = pd.read_csv("data/gapminder.csv")
df_ger = df[df["country"]=="Germany"]
df_usa = df[df["country"]=="United States"]

df_ger.head()

df_usa.head()

Exercise: Import the pyplot module from the matplotlib library under the alias plt.

import matplotlib.pyplot as plt

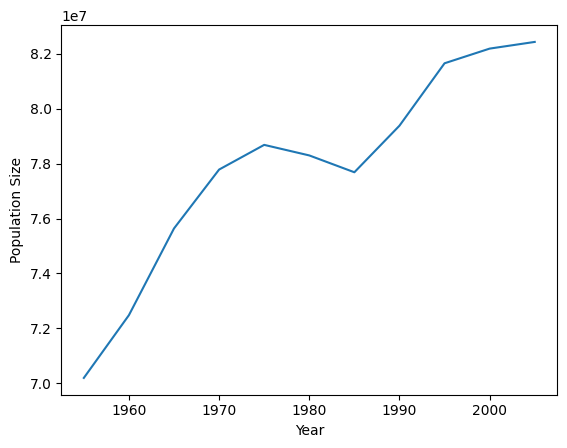

Example: Plot the population size ("pop") across time ("year") for Germany (df_ger) and label the x- and y-axis with "Year" and "Population Size".

plt.plot(df_ger['year'], df_ger['pop'])
plt.xlabel("Year")
plt.ylabel("Population Size")

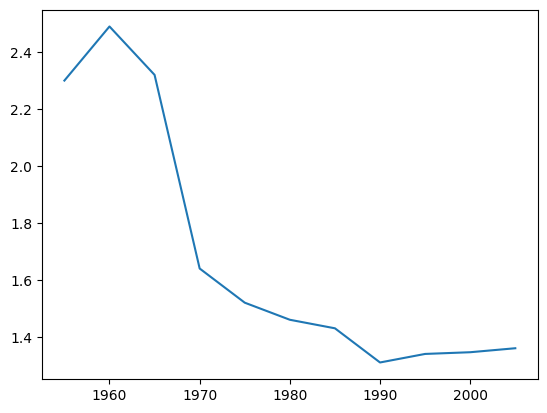

Exercise: Plot the fertility rates ("fertility") across time ("year") for Germany (df_ger)

Solution

plt.plot(df_ger['year'], df_ger['fertility'])

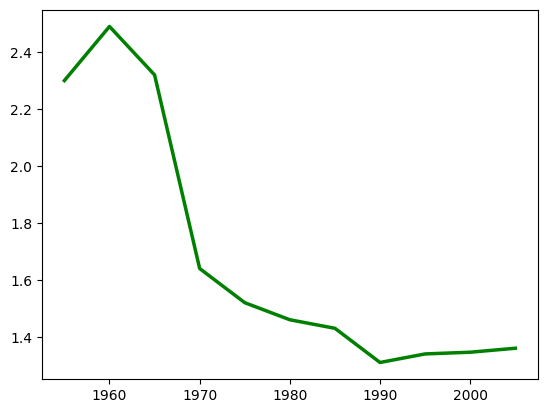

Exercise: Plot the fertility rates ("fertility") across time ("year") for Germany (df_ger) and set the linewidth to 2.5 and the color to green.

Solution

plt.plot(df_ger['year'], df_ger['fertility'], color = 'g', linewidth = 2.5)

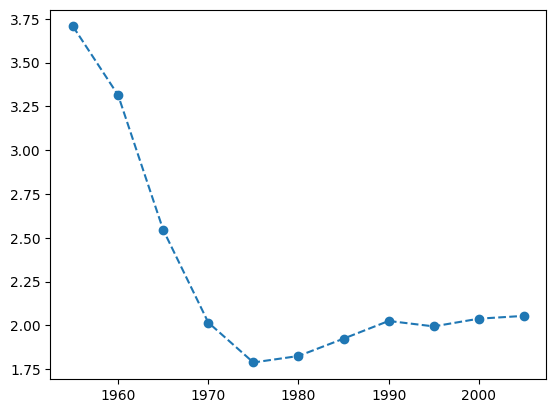

Exercise: Plot the fertility rates ("fertility") across time ("year") for the United States (df_usa) and add a marker.

Solution

plt.plot(df_usa['year'], df_usa['fertility'], linestyle = '--', marker = 'o')

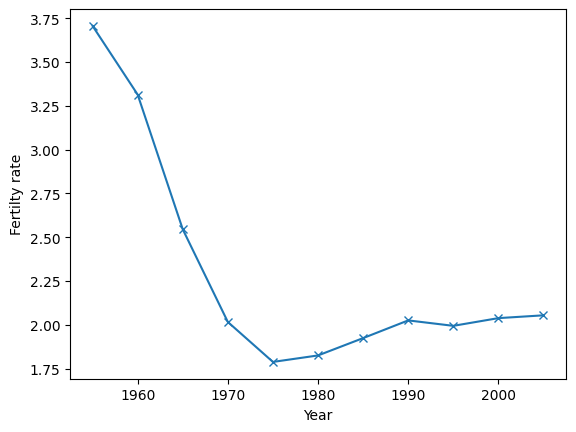

Exercise: Plot the same data but add the labels "Year" and "Fertility Rate" to the x- and y-axis.

Solution

plt.plot(df_usa['year'], df_usa['fertility'], marker = 'x')
plt.xlabel('Year')
plt.ylabel('Fertilty rate')

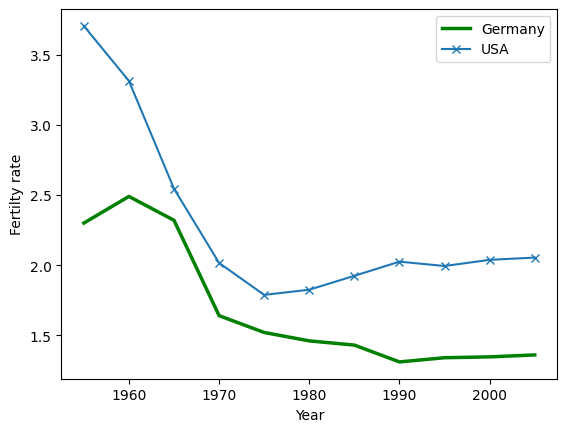

Exercise: Plot the fertility rates ("fertility") across time ("year") for Germany (df_ger) and the United States (df_usa) and label the x- and y-axis with "Year" and "Fertility Rate". Add a label to each line and add a plt.legend().

Solution

plt.plot(df_ger['year'], df_ger['fertility'], color = 'g', linewidth = 2.5, label = 'Germany')
plt.plot(df_usa['year'], df_usa['fertility'], marker = 'x', label='USA')
plt.xlabel('Year')
plt.ylabel('Fertilty rate')
plt.legend()

Often, we want to visualize different kinds of data side by side. For example, in our example data set, it would be interesting to plot the changes in fertility rate together with changes in population size. This can be done with the plt.subplot() function. plt.subplot takes three integer numbers as arguments. The first two numbers determine rows and columns in the grid of subplots. The third number determines the position of the current subplot in that grid, counting from left to right and from top to bottom. To create multiple subplots, we call plt.subplot() once, call the Matplotlib commands we want to execute (e.g. plt.plot() or plt.xlabel()) and then call plt.subplot() again to create the next one. Once we are done, we can save our result to an image using the plt.savefig() function.

Exercises

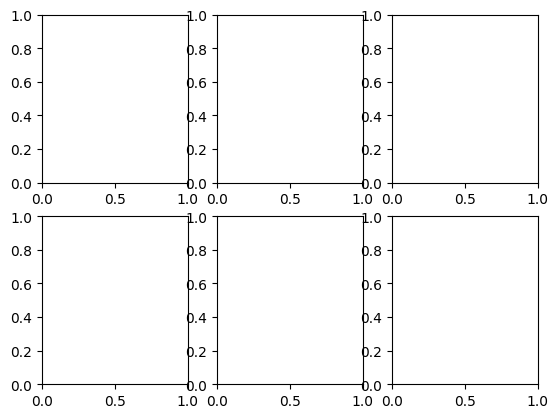

Example: Create a 2-by-2 grid of (empty) subplots

plt.subplot(2,3,1)
plt.subplot(2,3,2)
plt.subplot(2,3,3)
plt.subplot(2,3,4)
plt.subplot(2,3,5)
plt.subplot(2,3,6)

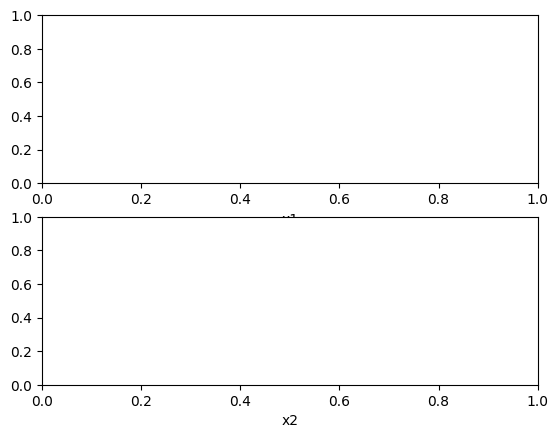

Example: Create a 2-by-1 grid of (empty) subplots and label their x-axes as "x1" and "x2".

plt.subplot(2,1,1)
plt.xlabel("x1")
plt.subplot(2,1,2)
plt.xlabel("x2")

Exercise: Create a 1-by-2 grid of (empty) subplots

Solution

plt.subplot(1,2,1)
plt.ylabel('y1')
plt.subplot(1,2,2)
plt.ylabel('y2')
plt.tight_layout()

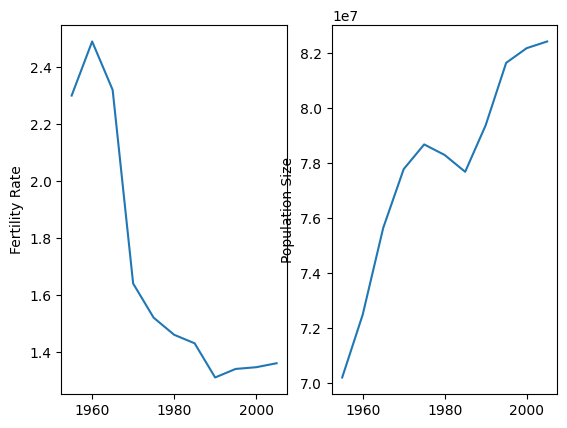

Exercise: Create a 1-by-2 grid of subplots. On the first one, plot the "fertility" rate and, one the second one, the population size ("pop") over time ("year") for Germany (df_ger). Label the y-axes "Fertility Rate" and "Population Size" and the x-axes "Year".

Solution

plt.subplot(1,2,1)
plt.plot(df_ger['year'], df_ger['fertility'])
plt.ylabel('Fertility Rate')

plt.subplot(1,2,2)
plt.plot(df_ger['year'], df_ger['pop'])
plt.ylabel('Population Size')

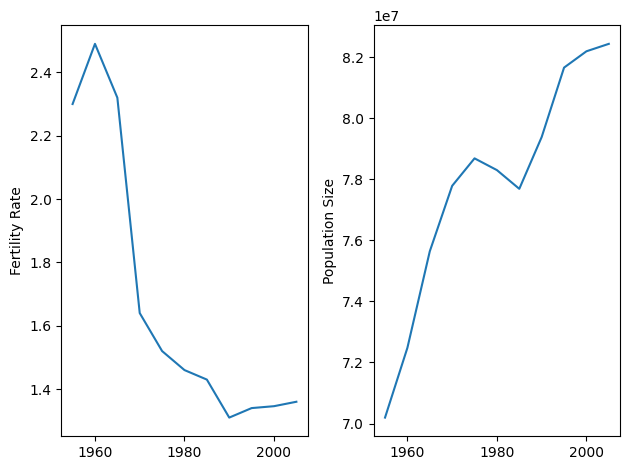

Exercise: Re-create the plot from Exercise 9 but call plt.tight_layout().

Solution

plt.subplot(1,2,1)
plt.plot(df_ger['year'], df_ger['fertility'])
plt.ylabel('Fertility Rate')
plt.subplot(1,2,2)
plt.plot(df_ger['year'], df_ger['pop'])
plt.ylabel('Population Size')
plt.tight_layout()

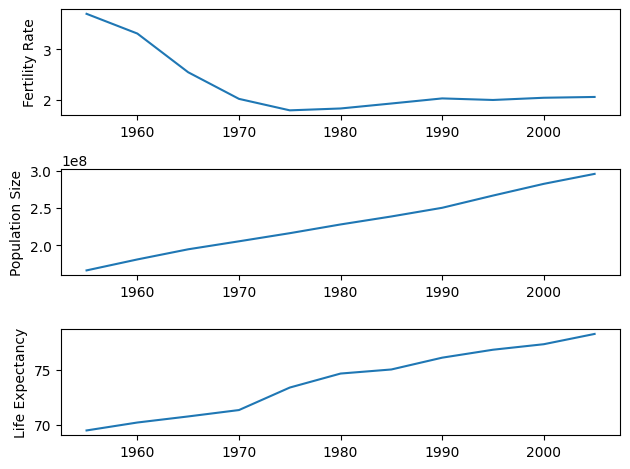

Exercise: Create a 3-by-1 grid of subplots. On the first one, plot the "fertility" rate and, on the second one, the population size ("pop") and on the third one the life expectancy ("life_expect") over time ("year") for the United States (df_usa). Label the x-axes with "Fertility Rate", "Population Size" and "Life Expectancy". Label the x-axis with "Year", only for the last subplot.

Solution

plt.subplot(3,1,1)
plt.plot(df_usa['year'], df_usa['fertility'])
plt.ylabel('Fertility Rate')
plt.subplot(3,1,2)
plt.plot(df_usa['year'], df_usa['pop'])
plt.ylabel('Population Size')
plt.subplot(3,1,3)
plt.plot(df_usa['year'], df_usa['life_expect'])
plt.ylabel('Life Expectancy')
plt.tight_layout()

Exercise: Re-create the figure from Exercise 11 and save it to a file called gapminder_us.png with 300 dpi. Then, open the image with your file browser to verify that the image was saved correctly.

Solution

plt.subplot(3,1,1)
plt.plot(df_usa['year'], df_usa['fertility'])
plt.ylabel('Fertility Rate')
plt.subplot(3,1,2)
plt.plot(df_usa['year'], df_usa['pop'])
plt.ylabel('Population Size')
plt.subplot(3,1,3)
plt.plot(df_usa['year'], df_usa['life_expect'])
plt.ylabel('Life Expectancy')
plt.tight_layout()

plt.savefig('gapminder_us.png', dpi=300)

Visualizations are great for understanding the relationship between variables. However, we also may want to quantify that relationship statistically. A simple way to do this is to fit a linear model to the data. The linear model describes the relationship between a dependent variable x and an independent variable y as a line. That line has two parameters: the intercept a and the slope b. a is the value of y when x==0 and b is the change in y that corresponds to a unit change in x. In this section, we will use the linregress() function from the scipy.stats module to model the relationship between life expectancy and fertility in the Gapminder data set. Finally, we will plot the estimated linear model together with the data.

Exercises

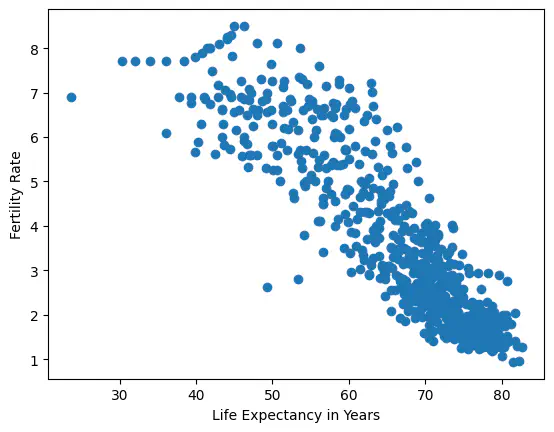

Example: Create a scatter plot to visualize the relationship between life expectancy ("life_expect") and fertility rates ("fertility") for the whole Gapminder data set (df) and label the axes with "Life Expectancy in Years" and "Fertility Rate".

plt.scatter(df['life_expect'], df['fertility'])
plt.xlabel('Life Expectancy in Years')
plt.ylabel('Fertility Rate')

Run the cell below to get the data for Asia and North America, respectively, and put them in separate data frames df_asia and df_noram.

df_asia = df[df['continent'] == 'Asia']
df_noram = df[df['continent'] == 'North America']

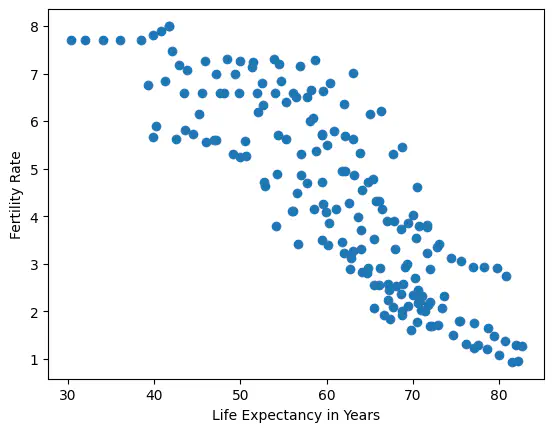

Exercise: Create a scatter plot to visualize the relationship between life expectancy ("life_expect") and fertility rates ("fertility") for Asia (df_asia) and label the axes with "Life Expectancy in Years" and "Fertility Rate".

Solution

plt.scatter(df_asia['life_expect'], df_asia['fertility'])
plt.xlabel('Life Expectancy in Years')
plt.ylabel('Fertility Rate')

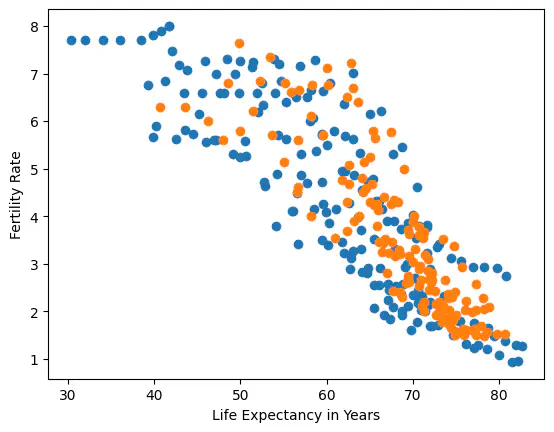

Exercise: Create a scatter plot to visualize the relationship between life expectancy ("life_expect") and fertility rates ("fertility") for both Asia (df_asia) and North America (df_noram) together in the same plot. Label the axes with "Life Expectancy in Years" and "Fertility Rate".

Solution

plt.scatter(df_asia['life_expect'], df_asia['fertility'])
plt.scatter(df_noram['life_expect'], df_noram['fertility'])
plt.xlabel('Life Expectancy in Years')
plt.ylabel('Fertility Rate')

Exercise: Import the linregress function from the scipy.stats module.

from scipy.stats import linregress

Example: Compute the linear regression between life expectancy ("life_expect") and population size ("pop") and store the returned value in a variable called results. Then, extract the p-value which is stored in the 4th element of results, assign it to a variable p and print that variable.

results = linregress(df["life_expect"], df["pop"])
p = results[3]
p

0.10897571814366507

Exercise: Compute the linear regression between life expectancy ("life_expect") and fertility rate ("fertility") and store the returned value in a variable called results. Then, extract the slope and intercept which are stored in the 1st and 2nd element of results, assign them to variables slope and intercept print those variable.

results = linregress(df["life_expect"], df["fertility"])
slope, intercept = results[0], results[1]
slope, intercept

(-0.1591172687736899, 14.130790658504012)

Exercise: Execute the cell below to create the line() function which takes in x values, the intercept, and the slope, and returns the corresponding y-values. Then call line() and pass the life expectancy values in df["life_expect"], the intercept and the slope to obtain the fertility rates predicted by the model. Store those in a new variable called fertility_pred.

def line(x, slope, intercept):
    """
    Return points on a line for the given x coordinates.
    Arguments:
        x: x-coordinates of the data points.
        a: intercept of the line.
        b: slope of the line.
    Returns:
        y: y-coordinates of the data point.
    """
    y = intercept + slope * x
    return y

fertility_pred = line(df['life_expect'], slope, intercept)

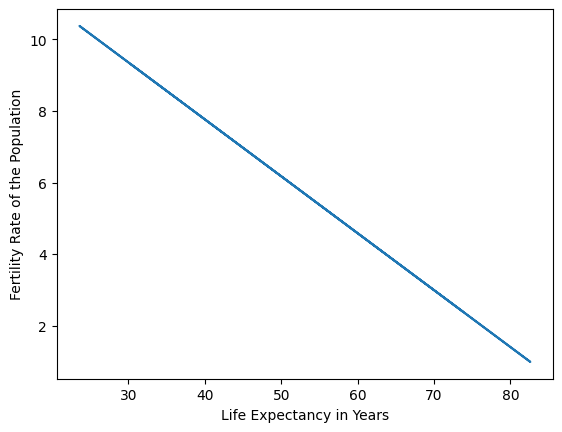

Exercise: Plot the predicted fertility (fertility_pred) against the life expectance (df['life_expect]) in a standard line plot (plt.plot()). Label the x- and y-axis "Life Expectancy in Years" and "Fertility Rate of the Population", respectively.

Solution

plt.plot(df['life_expect'], fertility_pred)
plt.xlabel('Life Expectancy in Years')
plt.ylabel('Fertility Rate of the Population')

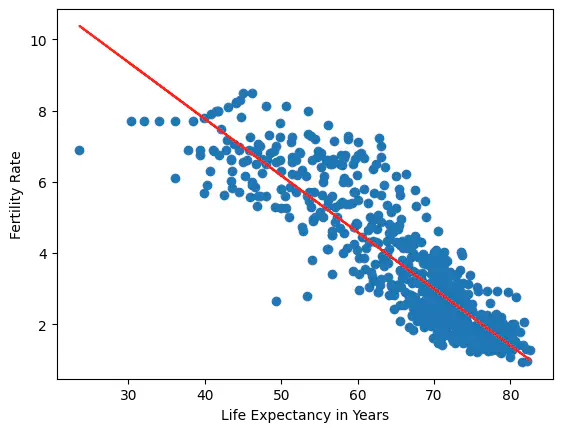

Exercise: Create a scatter plot to visualize the relationship between life expectancy ("life_expect") and fertility rates ("fertility"). Then, plt.plot() the predicted fertility rates against the life expectancy in the same plot. Finally, label the axes with "Life Expectancy in Years" and "Fertility Rate".

Hint: Change the color of the predicted fertility line if it’s hard to see.

Solution

plt.scatter(df['life_expect'], df['fertility'])
plt.plot(df['life_expect'], fertility_pred, 'r')
plt.xlabel('Life Expectancy in Years')
plt.ylabel('Fertility Rate')

Matplotlib takes an imperative approach to visualization where we specify exactly what we want to draw. This provides fine-grained control but also requires you to write more code. In contrast, Seaborn takes a more declarative approach where we specify what data we want to visualize. This allows us to create detailed visualizations without having to worry about the low level implementation. Finally, we can combine the advantages both approaches and use Seaborn to create and Matplotlib to customize our visualizations. In this section, we will use Seaborn to create detailed visualizations of the Gapminder data. Then, we’ll plot these visualizations to subplots created with Matplotlib and customize them.

Exercise: Import the seaborn library under the alias sns

import seaborn as sns

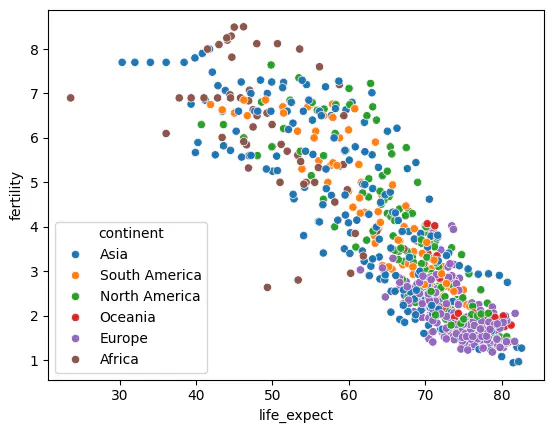

Exercise: Create a sns.scatterplot() to visualize the relationship between life expectancy ("life_expect") and "fertility" rates for the Gapminder data and add hue to encode the "continent".

Solution

sns.scatterplot(df, x = 'life_expect', y = 'fertility', hue = 'continent')

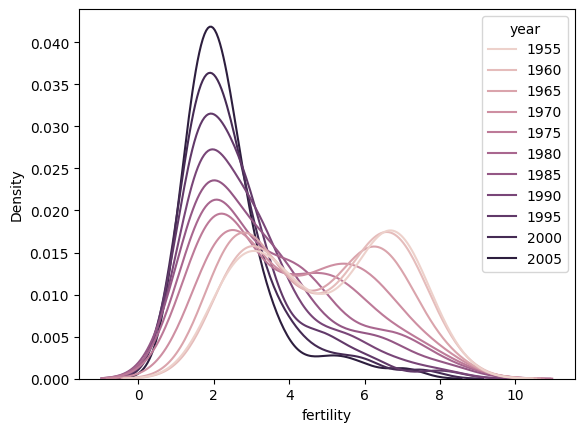

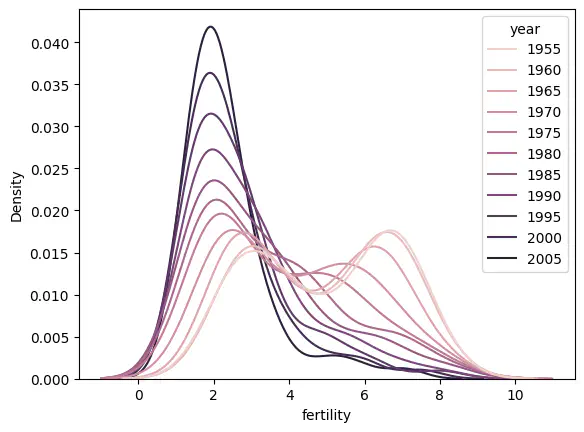

Exercise: Create a sns.kdeplot() (kernel density estimate) to visualize the global distribution for "fertility" rates and add hue to encode the "year".

Solution

sns.kdeplot(df, x = 'fertility', hue='year')

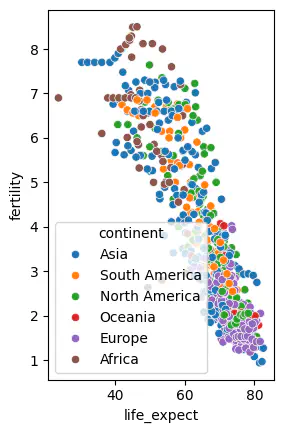

Example: Create the first subplot in a 1-by-2 grid and assign the returned axes object to a variable called ax1. Then, create the scatter plot from Exercise 20 and draw it to the subplot by using the ax argument of sns.scatterplot().

ax1 = plt.subplot(1,2,1)
sns.scatterplot(x=df["life_expect"], y=df["fertility"], hue=df["continent"], ax=ax1)

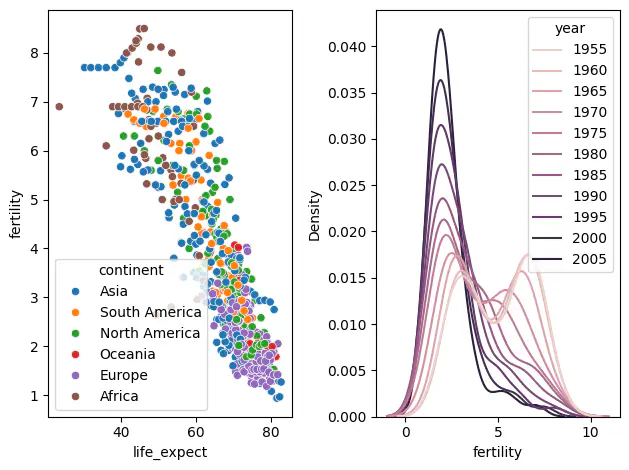

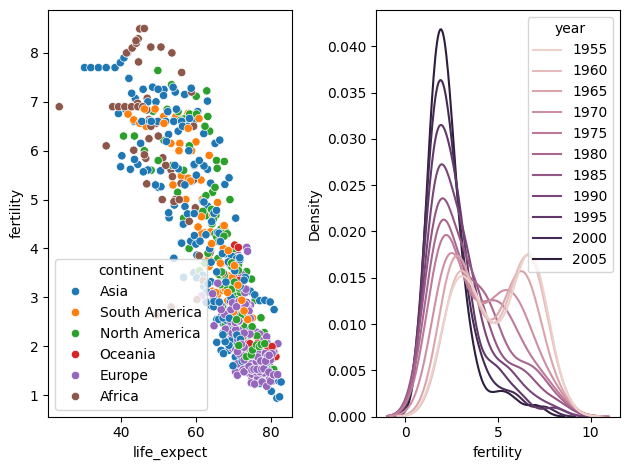

Exercise: Create two subplots in a 1-by-2 grid and assign the returned axes to two variables ax1 and ax2. Then, create the scatter plot from Exercise 20 and the kde plot from Exercise 21 and draw them to the subplots ax1 and ax2 by using the ax argument of sns.scatterplot() and sns.kdeplot(). Use plt.tight_layout() if necessary.

Solution

ax1 = plt.subplot(1,2,1)
ax2 = plt.subplot(1,2,2)

sns.scatterplot(x=df["life_expect"], y=df["fertility"], hue=df["continent"], ax=ax1)
sns.kdeplot(df, x = 'fertility', hue='year', ax = ax2)

plt.tight_layout()

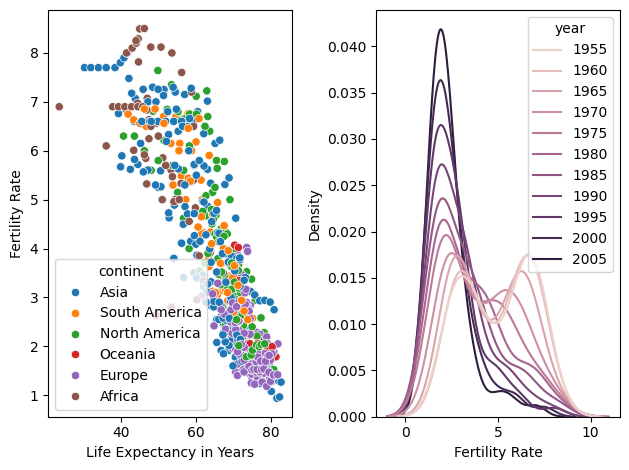

Exercise: Re-create the figure from Exercise 22 and use the .set() method to set the xlabel and ylabel of the scatter plot to "Life Expectancy in Years" and "Fertility Rate" and set the xlabel of the kde plot to "Fertility Rate".

Solution

ax1 = plt.subplot(1,2,1)
ax2 = plt.subplot(1,2,2)

sns.scatterplot(x=df["life_expect"], y=df["fertility"], hue=df["continent"], ax=ax1)
sns.kdeplot(df, x = 'fertility', hue='year', ax = ax2)

ax1.set(xlabel='Life Expectancy in Years', ylabel='Fertility Rate')
ax2.set(xlabel='Fertility Rate', ylabel='Density')

plt.tight_layout()

Exercise: Re-create the plot from Exercise 23 and use the .annotate() method to draw the letters "A" and "B" in the top left corner of the subplots.

Solution

ax1 = plt.subplot(1,2,1)
ax2 = plt.subplot(1,2,2)

sns.scatterplot(x=df["life_expect"], y=df["fertility"], hue=df["continent"], ax=ax1)
sns.kdeplot(df, x = 'fertility', hue='year', ax = ax2)

ax1.set(xlabel='Life Expectancy in Years', ylabel='Fertility Rate')
ax2.set(xlabel='Fertility Rate', ylabel='Density')

ax1.annotate('A', xy=[0.03,0.94], xycoords="axes fraction", fontsize = 18)
ax2.annotate('B', xy=[0.03,0.94], xycoords="axes fraction", fontsize = 18)

plt.tight_layout()
